Learn MVC Using AngularJS And Crystal Report

4 Min Read 248 Views

Introduction

In this article, we will learn MVC, using AngularJS and Crystal Report to help us handle server side data, using Visual Studio 2015.

What Is Crystal Report?

Crystal Report is a business intelligence application. Crystal Report is powered by SAP. It is used to design and generate reports from a wide range of data sources.

Why We Are Using SAP Crystal Report

  • Provides a powerful reporting tool.
  • Creates a real-time operational report.
  • Works with the web, Windows, and mobile devices.
  • Makes flexible and customizable reports.

Tools Installation

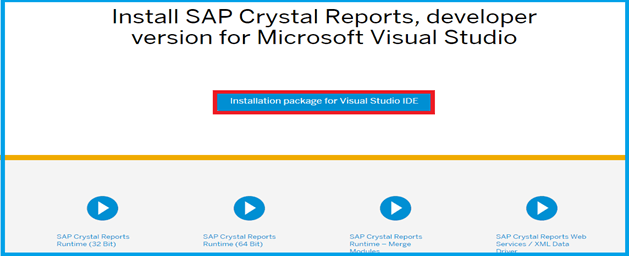

We will download the Crystal Report IDE from this link. After registration, “exe” will be downloaded automatically.

MVC

After completing the installation, restart Visual Studio.

Create an MVC Project

Open Visual Studio 2015.
MVC

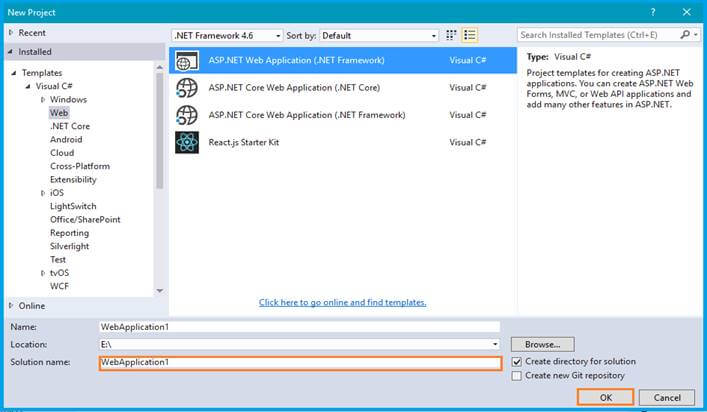

Go to Menu >New > Click Project > it will open the New Project popup.
MVC

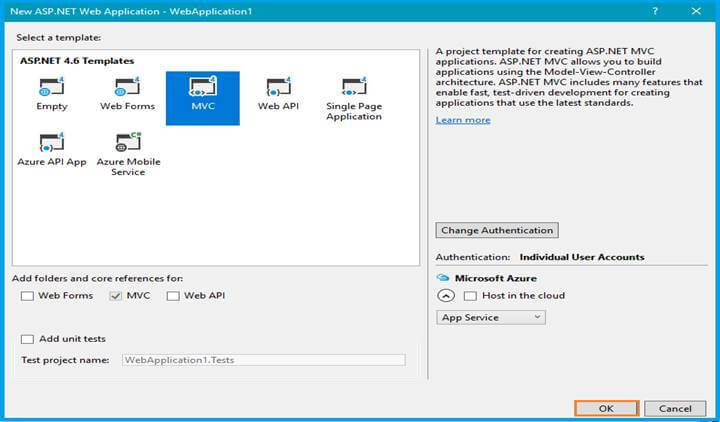

Select ASP.NET project and give to the solution name, and then click the OK button. Again one popup should appear that’s called ‘New ASP.NET Web Application.’
MVC

Select MVC Template and click OK to start the project. Configure AngularJS in this MVC project.

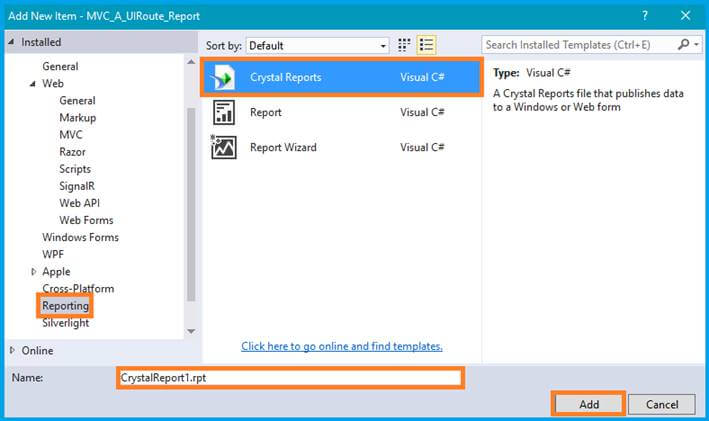

Create a new folder called Report and right click on the folder. Add Crystal Report into the Solution Explorer.

MVC

In this Report folder, add one Dataset for server-side data binding. This will be used to design the customizable reports.

MVC

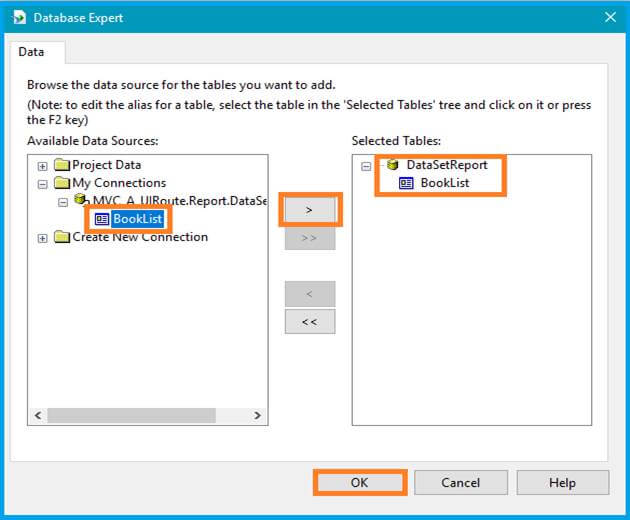

Use this DataSet to export your data for the designing and developing of the report.
MVC

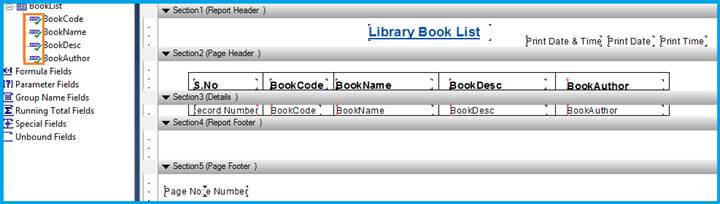

Easy-to-use] drag-and-drop controls are used in the design, as shown.
MVC

Write a method to access the data and bind to the data from the Server to Crystal Report in the Controller. I have written the code given below in my home controller file.

C# Code

public ActionResult ExportExcel()

        {

            List<BookModel> BookList = new List<BookModel>();

            DataSetReport DsReport = new DataSetReport();

            using (var con = new SqlConnection(ConfigurationManager.ConnectionStrings["DbSqlCon"].ConnectionString))

            {

                var cmd = new SqlCommand("BookMaster_SP", con);

                cmd.CommandType = CommandType.StoredProcedure;

                cmd.Parameters.Add(new SqlParameter("@Mode", SqlDbType.VarChar)).Value = "GET";

                con.Open();


                (new SqlDataAdapter(cmd)).Fill(DsReport.Tables["BookList"]);

            }


            ReportDocument rd = new ReportDocument();

            rd.Load(Path.Combine(Server.MapPath("~/Report"), "ReportBookList.rpt"));

            rd.SetDataSource(DsReport.Tables["BookList"]);


            Response.Buffer = false;

            Response.ClearContent();

            Response.ClearHeaders();



            Stream stream = rd.ExportToStream(CrystalDecisions.Shared.ExportFormatType.ExcelWorkbook);

            stream.Seek(0, SeekOrigin.Begin);

            return File(stream, "application/pdf", "ReportBookList.xlsx");

        }

Proceed, as shown below.

rd.Load(Path.Combine(Server.MapPath("~/Report"), "ReportBookList.rpt"));

In this article, I have demonstrated only Excel and PDF reports.

Stream stream = rd.ExportToStream(CrystalDecisions.Shared.ExportFormatType.ExcelWorkbook);

You can export 16 different types of report formats using Crystal Reports.

MVC

We have finished the server part of the work. Now we can start writing the code to the HTML and Angular JS controller file.

$scope.ExcelReport=function()
    {
        $window.open("Home/ExportExcel", "_blank");
    }
    $scope.PdfReport = function () {
        $window.open("Home/ExportPdf", "_blank");
    }

JavaScript Code

Before writing this code, you must inject the $Window keyword into the Angular Controller.

uiroute.controller('BookController', function ($scope, BookService, $window)

Call the above JavaScript function in your HTML buttons.

<button class="btn btn-success " ng-click="ExcelReport()">Excel Report</button>
<button class="btn btn-danger " ng-click="PdfReport()">Pdf Report</button>

That’s it! That’s all the client side part of the work. Now, you can run the application.

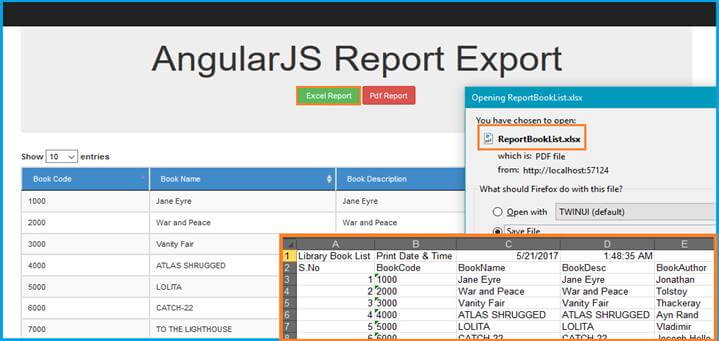

Output 1

MVC

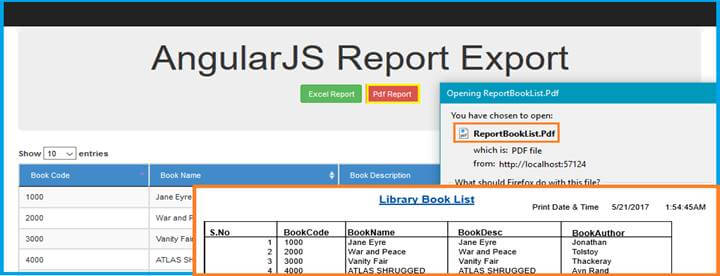

Output 2

MVC

Finally, we succeeded in exporting our data using Crystal Report in MVC AngularJS.

Source Code Download

Conclusion

In this article, we learned MVC, using AngularJS and Crystal Report. If you have any queries, please tell me through the comments section.

Happy Coding!
